Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter
Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter
Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter
Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter
Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter
Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter
Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter

Last Day Promotion 70% OFF - BSIDE A1X Digital Multimeter

$49.95
$99.90
-$49.95
option-buy-1
Please select a option
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
SKU: LASTDA-1514-1

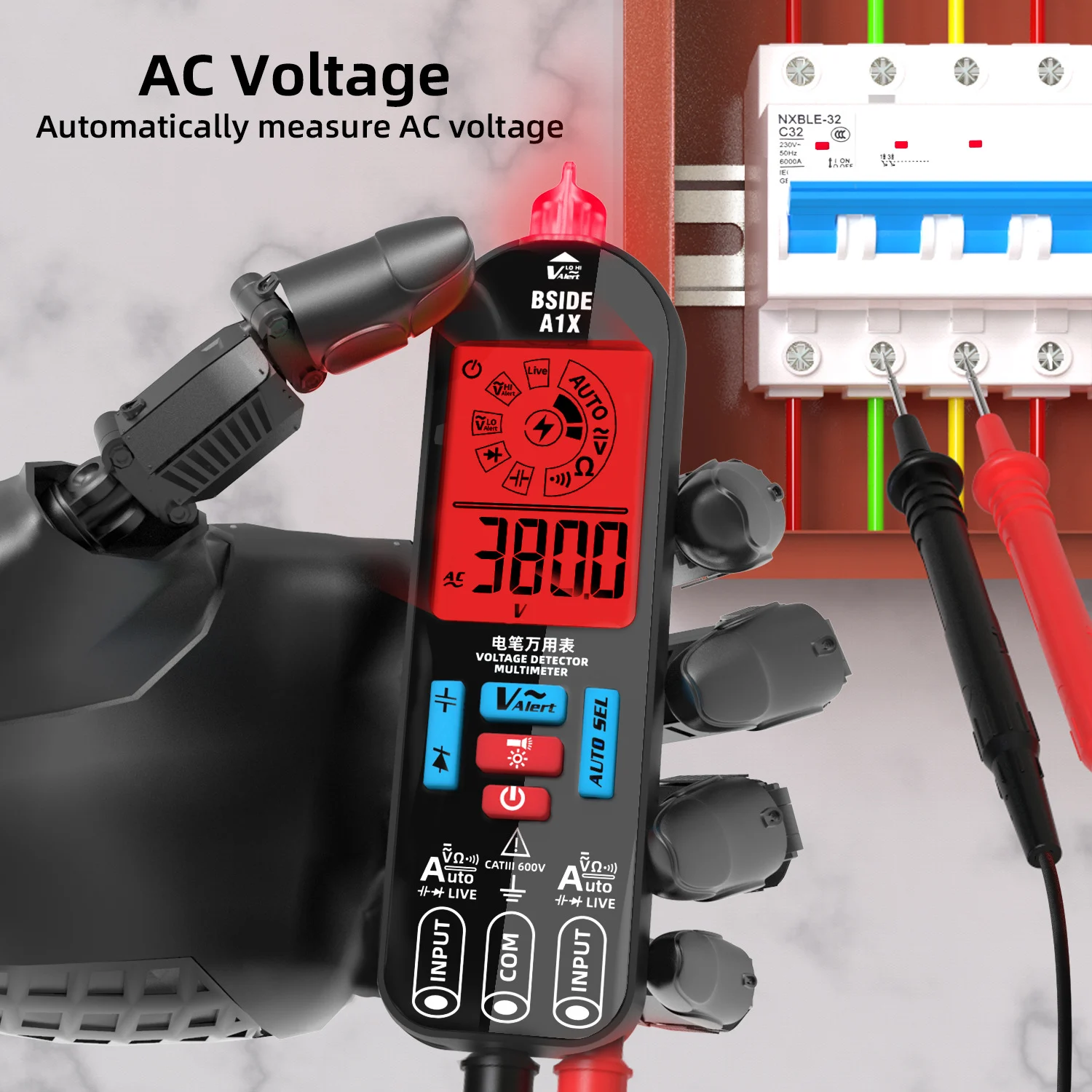

Professional Voltage Tester: The rechargeable multimeter can also be used as a professional non-contact voltage tester. The sensitivity of the ac volt tester is adjustable.

High Efficiency: Activating capacitance diode v-alert or auto mode measurement under any function design makes testing more convenient and greatly improves your efficiency.

Smart Mode: This smart multimeter tester can automatically measure AC and DC voltage resistance and continuity with the best resolution. All of these functions measurement can be done manually as well.

Red and Green Backlight: The smart digital multimeter has a high-resolution LCD screen with a red and green backlight greatly enhancing the reading experience.

Rechargeable: The intelligent multimeter comes with a rechargeable battery & charging cable so you will never worry about power problems.

Package Includes:

1 x Smart Multimeter
1 x Test Leads
1 x Charging Cable
1 x Rechargeable Battery
1 x User Manual

Specifications:

MAX Display: 2000 counts
DC Voltage:
0V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
AC Voltage:
0.005V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
Resistance:
0-1999Ω 1Ω ±(1.2%+5); 2KΩ-19.99KΩ 0.01KΩ ±(1.2%+3); 20KΩ-199.9KΩ 0.1KΩ ±(1.2%+3);
200KΩ-1999KΩ 1KΩ ±(1.2%+3); 2MΩ-19.99MΩ 0.01MΩ ±(1.5%+5)
Capacitance:
1nF-19.99nF 0.01nF ±(3.5%+8); 10nF-199.9nF 0.1nF ±(3.5%+8); 200nF-1999nF 1nF ±(3.5%+8);
2μF-19.99μF 0.01μF ±(4.5%+10); 20μF-199.9μF 0.1μF ±(4.5%+10); 200μF-1999μF 1μF ±(4.5%+10)
V-Alert (non-contact voltage detection): High and low mode
Live Wire Check: Yes
Continuity: If the resistance is less than 50Ω the beeper sounds
Diode: Measure diodes within 3V
Power: 3.7V (built-in rechargeable)
Size: 146*44*25.2mm
